Fractional Skin Resurfacing Transformed

Minimal ablative Fractional RF

futera dots

Futera Dots is minimal ablative technology that uses RF energy to heat tissues and stimulate subdermal collagen production to reduce fine wrinkles and loose skin. This system induces tissue remodeling and production of new collagen, elastin.

  • Tips Replaceable Practical Handpiece
  • Simultaneous Treatment for Epidermis and Demis Layer
  • Applicable to Various Symptom
  • Optimized User Friendly User Interface
  • Tailored Procedure Using 64 pin Tips
  • Quick Procedure Time by Repeat Feature
  • Portable Compact Design
_J3B8494(퓨테라Dots_좌측면)

Major Indications

  • Wrinkles
  • Scar revision
  • Acne scar revision
  • Textural irregularities
  • Superficial skin lesions
  • Skin laxity
  • Skin
    Elasticity
  • Scar & Pore
    Reduction
  • Skin Tone
    Improvement
  • Whitening

Minimal ablative Skin Resurfacing

Skin Resurfacing

  • Futera Dots uses fractional multi-polar radio frequency to penetrate through the skin - to allow more energy beneath the surface of the skin, to really maximize collagen production - while keeping the top layer of the skin intact.
  • Skin Resurfacing
  • Post treatment, you may notice increased levels of beneficial collagen as new healthy skin cells are produced. Mild to moderate wrinkles and superficial skin discolorations are reduced, and the texture of your skin becomes smoother and more elastic.
  • Skin Resurfacing
final-2.308

Ultra Fractional Multi-
Polarity Radiofrequency Technology

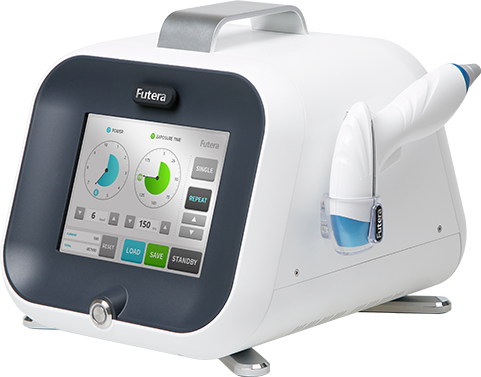

Handpiece

  • Minimal ablative Fractional RF handpiece
  • 64-pin array handpiece
  • Stable energy emission
  • Replaceable Tips
  • Quick procedure time by Repeat System

TIP

Fractional method of evenly spaced energy transmission,Collagen
regeneration by RF energy from epidermis to dermis.

  • 1
  • 2
  • 3

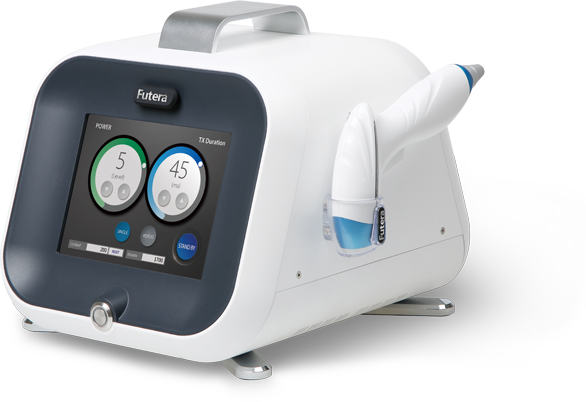

UI

Optimized user
friendly UI

Quick procedure time by Repeat System Easily select proper treatment parameters for a wide range of skin types and applications.

퓨테라Dots_UI

SPECIFICATION

Futera_Dots Specification
Product Type Fractional RF
Frequency Output 1 MHz
Tip type 64 pin
Output Range 80 w (Rated Load 200 Ω)
Repeat time 0.8 ~ 1.4 sec.
Exposure time 5 ~ 200 ms
Treatment area 11 x 11 (㎜)
Electrical Req. AC 110 ~ 230 v, 50/60Hz
Dimension (W x D x H) 340 x 350 x 280 (㎜)
Weight 4.5 ㎏
User Interface 8”Touch LCD
Power Consumption 180 VA
